    My new '63 Falcon

    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sun Mar 08, 2020 8:24 am

    My new '63 Falcon - Page 5 74717c10

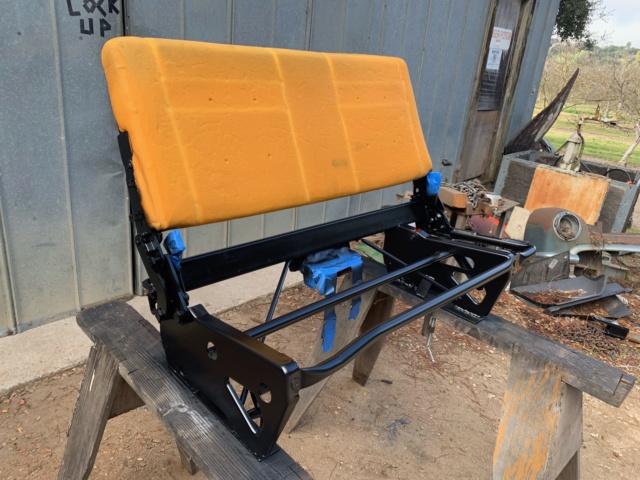

    I’m using Ford Aerostar benches that I got for cheap.  Stripping them down, modifying the base and painting.  I bought some vinyl that matches the front seats and I’m going to attempt to sew those up myself

    My new '63 Falcon - Page 5 A2958b10

    Been feeling like the back tires are a little too small.  These are 235/60 15 all around.  I just got some 275/60s for the back.  Will post some more pics when I get them mounted

    My new '63 Falcon - Page 5 C1808910
    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Sun Mar 08, 2020 1:08 pm

    Looks Great! Please keep the pics coming. They’re inspirational!!! What a Face cheers


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    savage
    savage


    Number of posts : 2628
    Location : Where Rust Never Sleeps in Ft Wayne IN
    Registration date : 2008-05-15

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by savage Mon Mar 09, 2020 5:55 am

    Looking Great !!!!!!!!!!!
    Some Major work you have done to Save another Early
    My pant jobs are always(tired of messing with it) Good Enough for me. Jobs
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Thu Apr 30, 2020 9:47 am

    I bought some of the military Hummer seat belts a couple years ago when they were dirt cheap.  Just now getting around to installing them.  3/16 x 1 1/2 flat stock, same as for the bumper brackets so I just bought a 20’ stick.  Anyways, here’s how I attached them

    My new '63 Falcon - Page 5 7b158410

    My new '63 Falcon - Page 5 Bdf6fa10

    My new '63 Falcon - Page 5 750df210


    I also cleaned up the heater.  Love the way these things look, just a utilitarian box right in the middle of the floor!

    My new '63 Falcon - Page 5 8b3eb410

    I’m really liking the Ace hardware brand premium rattle can paint.  Dries incredibly quick and I keep a few colors and glosses on hand for these little detail jobs


    My new '63 Falcon - Page 5 A2ffba10


    Made a little jig for my press, good for bending metal instead of putting it in the vise and grabbing a mini sledge
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sun May 03, 2020 6:12 pm

    I used the flat stock and a bit of angle to attach to the factory Camaro bumper brackets.  There’s some off angles so I kind of C-clamped it together before welding.  The bumper is a ‘69 Camaro rear bumper.  It really seems like it was made for this application, plus they’re cheap

    My new '63 Falcon - Page 5 Acb5b310

    My new '63 Falcon - Page 5 Aeb3c610

    My new '63 Falcon - Page 5 6cbe0810
    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Sun May 03, 2020 7:32 pm

    Very Nice! cheers


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sun May 03, 2020 8:28 pm

    Thanks Vanny.  I don’t have back up lights on my ‘63 but wanted to do something discreet.  Bought these little LED lights from Amazon and put two in existing holes on the bumper and two in the body flange.  Wired up to a switch under the steering wheel.  I’m happy with the light output

    My new '63 Falcon - Page 5 31b01110

    My new '63 Falcon - Page 5 69603310

    My new '63 Falcon - Page 5 01aedb10

    sweetvan likes this post

    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sun May 03, 2020 8:33 pm

    My new '63 Falcon - Page 5 930ceb10

    My new '63 Falcon - Page 5 37584810
    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Sun May 03, 2020 8:56 pm

    Those throw off a lot of light Hip E...You won't have any trouble seeing what's behind you. Can you see well with the mirrors when backing up? I was thinking about maybe looking into a backup camera in the future... scratch


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sun May 03, 2020 9:08 pm

    I’ve got those peep mirrors and they’re not great for visibility, look cool tho. Since I’ve got the window van I’ll mostly just be looking over my shoulders. I bought a NOS set of gen 2 mirrors but just couldn’t bring myself to drill into that paint job. I think a backup camera is a great idea
    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Sun May 03, 2020 9:16 pm

    Yeah, then you could keep the cool looking peeps and not have to drill holes!


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Mon Dec 19, 2022 10:24 pm

    Time for an engine swap.  Removed the old 170 and pulled the 302 out of the free donor Lincoln.  Did it all solo which was a bit challenging.  Cleaned and painted, converted from EFI to carburetor and put on some shiny stuff.

    My new '63 Falcon - Page 5 Ecf5a810

    My new '63 Falcon - Page 5 7bef1910

    My new '63 Falcon - Page 5 56974c10

    My new '63 Falcon - Page 5 D2702310

    Decided to complicate things by putting the new motor lower and further rearward than stock hoping for a lower center of gravity for this lunchbox.  Mounting brackets are a combination of universal ones and custom drop stuff on the “frame” rails.  I’ll need to snap some pics of that still.

    My new '63 Falcon - Page 5 Ad557010

    Probably installed and removed the motor and trans like 10 times trying to figure out the placement, sketchy to say the least


    Last edited by Hip E van on Wed Dec 21, 2022 6:58 pm; edited 1 time in total

    sweetvan and 13-ball like this post

    dix
    dix
    Moderator 1st Class
    Moderator 1st Class


    Number of posts : 8747
    Location : pittsburgh pa
    Age : 67
    Registration date : 2008-05-29

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by dix Tue Dec 20, 2022 2:37 am

    sweet. great work especially comparing : page 1 to page 5
    My new '63 Falcon - Page 5 203c


    _________________
    still vannin since 1974
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Wed Dec 21, 2022 6:51 pm

    Thanks Dix

    Here’s some pics of the wider wheels and tires.  I had put on 235/60/15 on 7” wide rims front and back.  I’m shooting for more of a 70’s vibe so in the rear I stepped up to an 8” wide rim with 275/60/15.  She’s not movable at the moment so I can’t get a good side pic but this will help if you’re wondering how far they stick out

    My new '63 Falcon - Page 5 1c688410


    My new '63 Falcon - Page 5 03783e10
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Wed Dec 21, 2022 7:24 pm

    Speaking of the donor Lincoln, I utilized the motor, a 5.0 roller cam with low miles, the AOD overdrive transmission and the rear end which is a 8.8 with posi traction and disc brakes.  The rear end was I believe around 3/4” wider than the stock Econoline and I just had to weld on new spring perches and shock mounts.  It even has a rear sway bar that I’m still thinking about how to attach.  I took the whole van to a local suspension shop and had them measure, shorten and balance the Lincoln drive shaft.  Here’s a little glamour shot of her on the trailer.  They’re just so quirky it always puts a smile on my face.


    My new '63 Falcon - Page 5 1e1d0a10

    dix and vanny like this post

    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Thu Dec 22, 2022 1:10 pm

    Love those wide wheels! They definitely give it that 70’s feel! Does the air cleaner fit under the dog house or do you have to make it a little taller? Thanks for the pics and updates….many of us look forward to viewing them!!! cheers cheers cheers


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Thu Dec 22, 2022 5:25 pm

    Hi Vanny.  Here’s the secret sauce for mega air cleaner clearance, drop that motor like it’s hot!  I really wanted the exhaust manifolds under the floor to cut down on doghouse heat.  I grabbed some pics of the mounting plates for the motor and trans.  3/16” plate, seems strong enough for my needs.

    My new '63 Falcon - Page 5 25eb5310

    My new '63 Falcon - Page 5 F3614710

    My new '63 Falcon - Page 5 41664410

    My new '63 Falcon - Page 5 76499e10

    My new '63 Falcon - Page 5 A56f5810
    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by vanny Thu Dec 22, 2022 6:50 pm

    Wow! That’s Awesome! The engineering is beyond my comprehension but it sure looks Great! Thanks for the detailed pics…love people who are gutsy enough to go for it!!! Twisted Evil


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Thu Dec 22, 2022 7:55 pm

    Haha, don’t accuse me of doing any engineering, I’m just a guy with some cardboard and a sharpie!  You might have noticed in the photos that I decided side pipes are in order.  Here’s some pics how I did it but I think I would have used nut zerts going into the structure instead of self tappers if I was to do it again.  I have since bought a kit and they’re cheap on Amazon and pretty handy.

    My new '63 Falcon - Page 5 D832ef10

    My new '63 Falcon - Page 5 7da32910

    My new '63 Falcon - Page 5 B7696b10


    My new '63 Falcon - Page 5 87f5f710

    dix likes this post

    Hip E van
    Hip E van


    Number of posts : 91
    Location : Central Coast, CA
    Registration date : 2014-12-20

    My new '63 Falcon - Page 5 Empty Re: My new '63 Falcon

    Post by Hip E van Sat Dec 24, 2022 9:26 am

    I’m also converting over to an electric fan and using the Volvo one with the relay that’s pretty common.  Made a shroud to support it but I’ve still got to make new brackets as the radiator needs to move a few inches forward.  Swapping over to the larger Mustang gas tank too but only part way thru as my welder is giving me some trouble.

    My new '63 Falcon - Page 5 B1b25410
