    Second Gen Wiring Diagram

    wideload
    wideload
    Moderator 1st Class
    Moderator 1st Class


    Number of posts : 1389
    Location : Kevil, Kentucky
    Age : 71
    Registration date : 2008-05-11

    Second Gen Wiring Diagram Empty Second Gen Wiring Diagram

    Post by wideload Mon Dec 05, 2011 9:47 am

    A big thanks to Viewmaster (Carl) for doing this !!!!! It's been a big help to me so I thought is should be here to benefit everyone else also.

    Second Gen Wiring Diagram Fusebo10

    Second Gen Wiring Diagram 2ndgen10

    Second Gen Wiring Diagram 2ndgen11

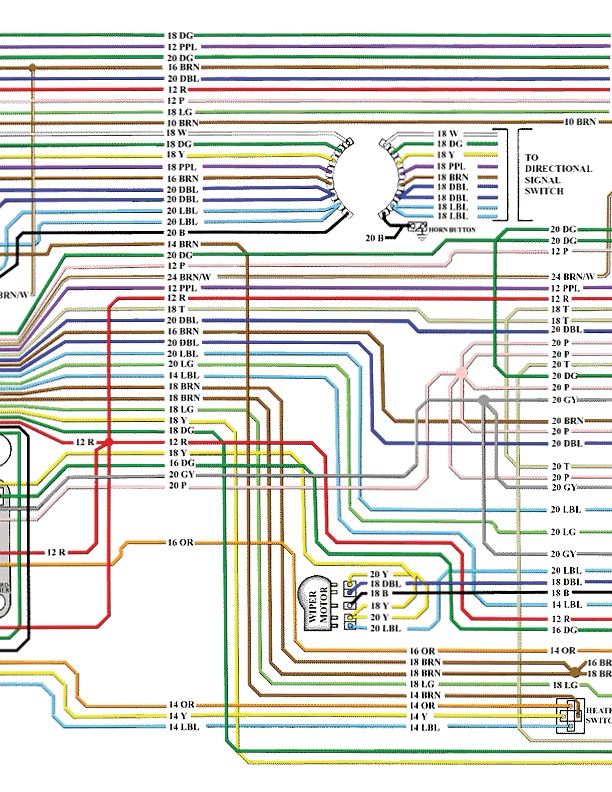

    Second Gen Wiring Diagram 2ndgen12

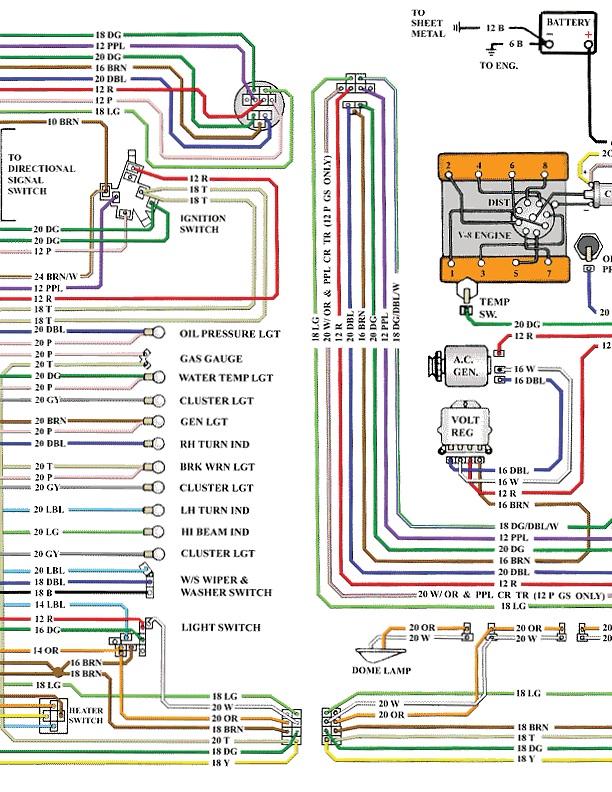

    Second Gen Wiring Diagram 2ndgen13

    Second Gen Wiring Diagram 2ndgen14

    You can left click on each to view the whole page or you can right click on each and save them to your computer, print each page then tape them together to make a real nice wiring diagram.


    avatar
    Guest
    Guest


    Second Gen Wiring Diagram Empty Re: Second Gen Wiring Diagram

    Post by Guest Sat Jan 21, 2012 7:45 pm

    Thanks I've been looking everywhere for a good diagram for my 69 I'm having a glitch with the accessory power it cut out a few times and now I have no juice at all to my fuse box.
    donivan65
    donivan65
    Governor
    Governor


    Number of posts : 12245
    Location : San Diego, California
    Registration date : 2008-05-12

    Second Gen Wiring Diagram Empty Re: Second Gen Wiring Diagram

    Post by donivan65 Sat Jan 21, 2012 8:12 pm

    I would be making sure the fusible link is good and the power is getting through the connector under the seat as well as to the buss bar on the back of the fuse box,,,,,,,
    kaz
    kaz


    Number of posts : 114
    Location : Gilbert ,Arizona
    Age : 65
    Registration date : 2012-07-28

    Second Gen Wiring Diagram Empty ???????

    Post by kaz Mon Nov 24, 2014 1:34 am

    will this Diagram sunny work for my 66 sportvan 230 /6 ?
    rocky69rhodes
    rocky69rhodes


    Number of posts : 359
    Location : chula vista ca
    Registration date : 2014-09-26

    Second Gen Wiring Diagram Empty Re: Second Gen Wiring Diagram

    Post by rocky69rhodes Mon Nov 24, 2014 1:50 am

    I have the 67 book if anyone needs anything else
    wideload
    wideload
    Moderator 1st Class
    Moderator 1st Class


    Number of posts : 1389
    Location : Kevil, Kentucky
    Age : 71
    Registration date : 2008-05-11

    Second Gen Wiring Diagram Empty Re: Second Gen Wiring Diagram

    Post by wideload Mon Nov 24, 2014 4:09 am

    Kaz, here's the one for the first gens (64-66). Both of these are in the Archives section of the forum.

    https://vintage-vans.forumotion.com/t25630-first-gen-wiring-diagram

    savage likes this post

    AzDon
    AzDon


    Number of posts : 753
    Location : Lake Havasu Az
    Age : 68
    Registration date : 2014-01-20

    Second Gen Wiring Diagram Empty Re: Second Gen Wiring Diagram

    Post by AzDon Sat Aug 14, 2021 12:36 pm

    Is there a second diagram for van that had gauges rather than warning lights?
    Mine has gauges...
    My engine harness has a black wire in place of the blue oil pressure wire that appears to terminate with the starter wires (no end on it) and also has a black/white wire in the end spot of the four hole row of the plug which has what looks like a rubber fuse holder, but is sealed and that wire splices into the 12g red wires splice (engine harness).... My guess is this wire is associated with the ammeter....
    Otherwise this diagram answers all my questions...
    Thank you for posting it!
