    Wiring to doors

    mimmell
    mimmell


    Number of posts : 6
    Location : Buffalo, OK
    Registration date : 2020-01-02

    Wiring to doors Empty Wiring to doors

    Post by mimmell Wed Mar 23, 2022 2:39 pm

    Have a '68 G10 and need to get the marker lights working, maybe add electric windows.

    What is the best way to get power to the doors and manage the wiring in a tidy way.

    Thanks so much.
    donivan65
    donivan65
    Governor
    Governor


    Number of posts : 12225
    Location : San Diego, California
    Registration date : 2008-05-12

    Wiring to doors Empty Re: Wiring to doors

    Post by donivan65 Wed Mar 23, 2022 4:39 pm

    Some years those lens are just reflectors,,,,,are yours set up for bulbs inside?
    mimmell
    mimmell


    Number of posts : 6
    Location : Buffalo, OK
    Registration date : 2020-01-02

    Wiring to doors Empty Re: Wiring to doors

    Post by mimmell Wed Mar 23, 2022 5:47 pm

    I will check. Just assumed (my bad) that they were side markers. The van has been worked on quite a bit from multiple folks and the wiring is a mess. Thought they had just removed the wiring to make things easier. Thanks for the guidance.

    For anyone else, would still be interested in power windows as an option.
    uncle ron
    uncle ron


    Number of posts : 91
    Location : orange,calif.
    Age : 76
    Registration date : 2012-05-31

    Wiring to doors Empty door wiring

    Post by uncle ron Wed Mar 23, 2022 11:36 pm

    Wiring to doors 07211

    savage, gmytych and mimmell like this post

    uncle ron
    uncle ron


    Number of posts : 91
    Location : orange,calif.
    Age : 76
    Registration date : 2012-05-31

    Wiring to doors Empty door wiring

    Post by uncle ron Wed Mar 23, 2022 11:45 pm

    Wiring to doors 19912

    savage, gmytych, Buddyr and mimmell like this post

    lboast
    lboast


    Number of posts : 112
    Location : Prosser, Washington
    Registration date : 2020-11-01

    Wiring to doors Empty Re: Wiring to doors

    Post by lboast Thu Mar 24, 2022 12:16 am

    mimmell wrote:Have a '68 G10 and need to get the marker lights working, maybe add electric windows.

    What is the best way to get power to the doors and manage the wiring in a tidy way.

    Thanks so much.
    My 69 had side reflectors in the front, and side lights in the rear. the wiring all ran to each side of the van individually. the passengers side had the tail lights that also powered the side marker as well as the Brake/Signal only. The drivers side had the Tail lights that also powered the side marker and the license plate light and the brake/signal light. The drivers side wiring also had a wire coming from the fuel sending unit to the gauge in front.

    gmytych and mimmell like this post

    mimmell
    mimmell


    Number of posts : 6
    Location : Buffalo, OK
    Registration date : 2020-01-02

    Wiring to doors Empty Re: Wiring to doors

    Post by mimmell Thu Mar 24, 2022 7:05 am

    uncle ron wrote:Wiring to doors 07211

    Fantastic solution. Do you have a link where you purchased those?

    Thanks so much. Wanting to do the exact same thing.

    gmytych likes this post

    donivan65
    donivan65
    Governor
    Governor


    Number of posts : 12225
    Location : San Diego, California
    Registration date : 2008-05-12

    Wiring to doors Empty Re: Wiring to doors

    Post by donivan65 Thu Mar 24, 2022 11:20 am

    So hows the wiring getting out to the license plate light? They also use this spring set up that lets the wires run through it and the door slides over the spring,,,,,

    Wiring to doors Dscn0220

    savage and gmytych like this post

    uncle ron
    uncle ron


    Number of posts : 91
    Location : orange,calif.
    Age : 76
    Registration date : 2012-05-31

    Wiring to doors Empty Re: Wiring to doors

    Post by uncle ron Thu Mar 24, 2022 12:21 pm

    Wiring to doors 18612

    gmytych likes this post

    uncle ron
    uncle ron


    Number of posts : 91
    Location : orange,calif.
    Age : 76
    Registration date : 2012-05-31

    Wiring to doors Empty Re: Wiring to doors

    Post by uncle ron Thu Mar 24, 2022 1:13 pm

    mimmell , I used painless wiring . part # 40022 . they have 2 , 3 , and 4 button connectors . ron
    Buddyr
    Buddyr


    Number of posts : 48
    Location : Raymond NH
    Registration date : 2015-10-08

    Wiring to doors Empty Re: Wiring to doors

    Post by Buddyr Thu Mar 24, 2022 4:32 pm

    Here are some pictures of what I had done. I bought two 5/8" x 12" springs and 4 3/4" plastic grommets. secure one end and add a smaller spring inside the door to pull it in.


    Wiring to doors 93383910

    2" From inside of door.

    Wiring to doors 92868510

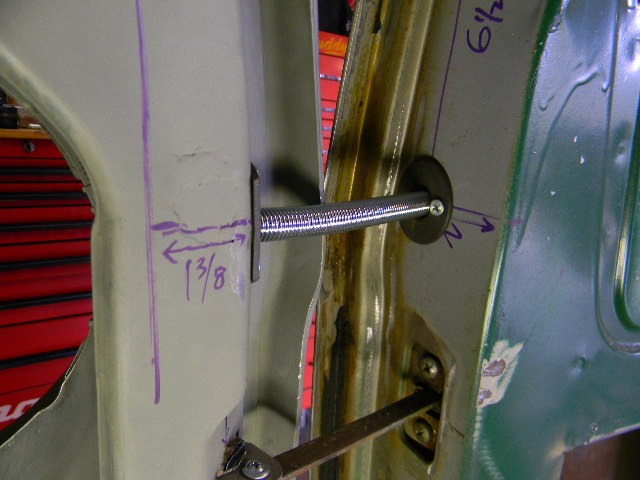

    6 1/2" down from bottom bolt on top hinge.

    Wiring to doors 93222710

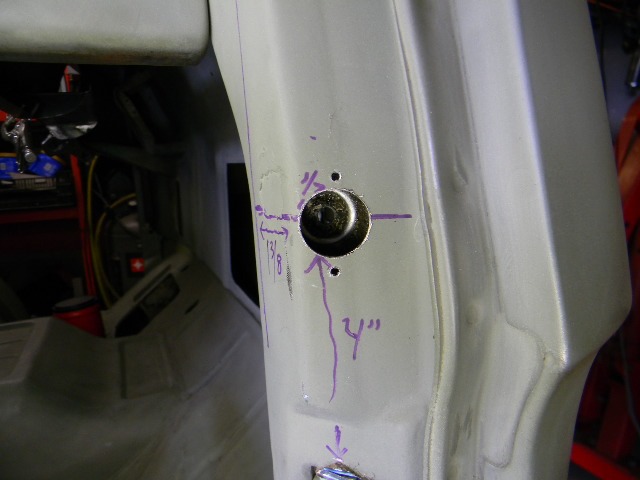

    On the A pillar drill 4" up from door check and 1/2 " forward. drill 3/4" holes in door and pillar. Note there is two panels to drill through on both.

    Wiring to doors 93048910

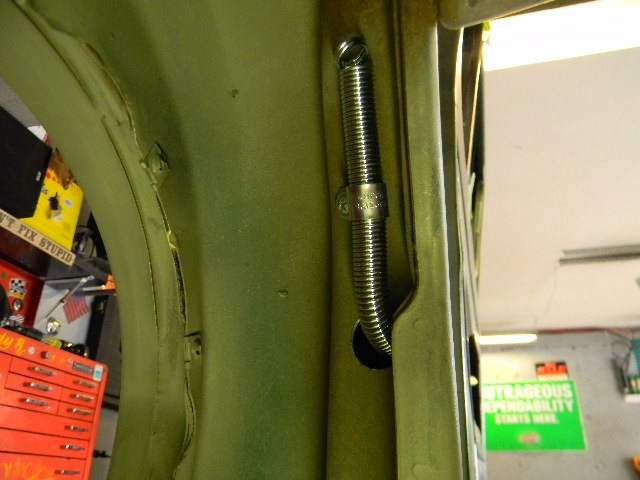

    Insert the spring and secure it with a "R" clamp.

    Wiring to doors 93000410

    install the grommets.

    Wiring to doors 92865510


    Wiring to doors 79228710

    I ran speaker wires marker light wires and interior step light wires. 6 Wires all together. Don't tape them together they need to float around in there to open and close.

    savage and gmytych like this post
