    Some pics of widening the wheelwells.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210219

    I used panel bonding adhesive to glue flanges to the bed sides where I didnt want to burn the exterior paint.   Guess only time will tell if it'll hold up.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210218


    1961 Rust-O-Mod Pickup Build thread - Page 3 20210221


    1961 Rust-O-Mod Pickup Build thread - Page 3 20210220

    savage, dix, vanny and gsnyder67 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Raised Bed Almost Done

    Post by 13-ball Tue Apr 27, 2021 10:31 am

    The bed came out pretty good - in my humble opinion....

    I like that it looks almost stock even though it's a ton of custom work.

    Somewhere I have more pics of building it - can't locate them in my mess of files right now.  Will post when I locate them.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210410

    1961 Rust-O-Mod Pickup Build thread - Page 3 20201025

    savage, dix, vanny and gsnyder67 like this post

    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by vanny Tue Apr 27, 2021 2:51 pm

    From that second pic, looks like you’re in a somewhat precarious position... What a Face affraid Rolling Eyes

    The bed looks Fantastic!!!


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Tue Apr 27, 2021 3:59 pm

    Thanks Vanny - appreciate the good word.

    Luckily I had my supervisor on site to keep things safe!

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210411

    savage, gsnyder67 and Russell like this post

    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by vanny Tue Apr 27, 2021 4:04 pm

    Is he the one who took the pic??? lol!


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Raised E100 pickup bed photos

    Post by 13-ball Wed May 05, 2021 6:03 pm

    Found the pics of constructing the bed.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210121

    These little corner pieces were the most tedious parts.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210120

    A spritz of primer to see how it's turning out.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210122

    The fuel filler neck is going in the flat area with yellow marks.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210123

    savage, vanny and gsnyder67 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Relocated fuel filler inside bed

    Post by 13-ball Thu May 06, 2021 3:02 pm

    The fuel filler neck needed to be much higher with the tank sitting on top of the old bed surface.  Was thinking to incorporate it into the wheelwell somehow but this turned out to be simpler.  A pretty straight shot to the inlet of the tank.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210124

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210125

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210126

    savage, vanny and gsnyder67 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty More pics of the bed fab

    Post by 13-ball Fri May 07, 2021 2:36 pm

    A few more shots of fabbing the bed supports.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210223

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210222

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210224

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210225

    savage, vanny, gsnyder67 and Russell like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Hinged bed section

    Post by 13-ball Mon May 10, 2021 12:56 pm

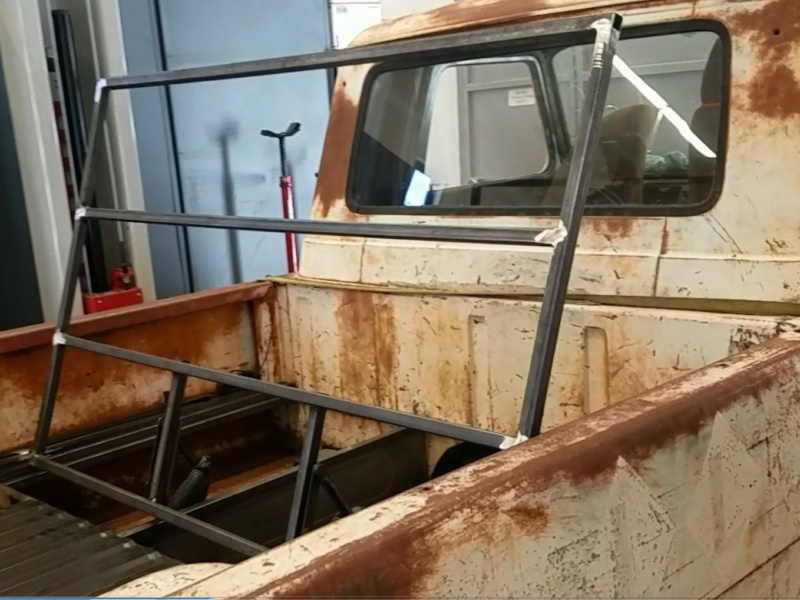

    The front part of the bed opens up like a hood or trunk.  I'm going to keep the air ride stuff, the battery and the spare tire under there.

    1961 Rust-O-Mod Pickup Build thread - Page 3 Trunk_11

    1961 Rust-O-Mod Pickup Build thread - Page 3 Trunk_10

    I originally got these hood hinges from a 90's Chevy pickup.  Couldn't figure out how to get them to work out right.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210127

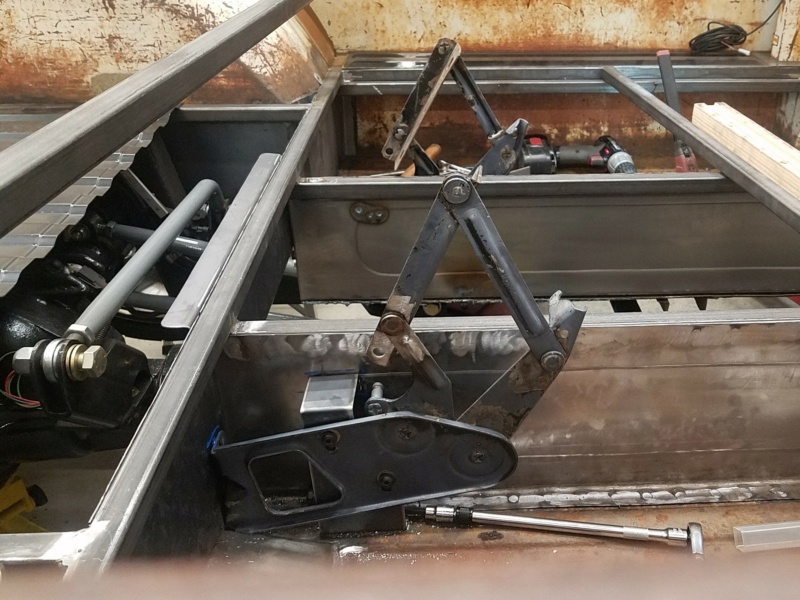

    These hinges were from a Jeep Gladiator pickup.  They were cheap and seemed like they'd fit the space pretty well.  I think any hood hinges of this type would have worked OK.  I had to modify the pivot arms a little bit to get it to open up wider/higher.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210311

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210310

    savage, dix, vanny and gsnyder67 like this post

    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by vanny Mon May 10, 2021 5:05 pm

    Great skills! Nice work!!! cheers


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Bed surface on opening part

    Post by 13-ball Tue May 11, 2021 3:43 pm

    Here are some shots of the "trunk" with the decking on it.

    Yes, I was walking on it! Stress test....
    1961 Rust-O-Mod Pickup Build thread - Page 3 20210412

    Open!  Says me....
    1961 Rust-O-Mod Pickup Build thread - Page 3 20210413

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210313

    The springs on the hood hinges are strong enough to hold it open really well but still closes easily.  Was a little afraid the deck would be too heavy.
    1961 Rust-O-Mod Pickup Build thread - Page 3 20210314

    savage, dix, 66e100pu, vanny, gsnyder67, Russell and jrdunn96 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Mon Nov 01, 2021 5:05 pm

    It has been a while since I've posted any progress on my pickup.  We bought a cabin over in Colorado and spend the summer working on it and on the property.  So many projects...!

    One fun thing I did was build a bridge.  Actually didn't get it completed but the structure is all in.  Here are some photos - just to show I wasn't just napping all this time.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211011

    I built it from dead timber found on the property.  Mixed concrete with a cheapo Harbor Freight mixer and generator.  Milled the logs using a Granberg chainsaw mill.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210911

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210910

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211010

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210912

    Added two more beams in the center after this photo.  The deck boards will be 2 1/2" thick.  I'm milling them with the chainsaw.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210913

    Too much snow up there now to finish so I'm back in Moab.  Back to cutting metal - instead of wood.  Will post more Econo progress photos in the coming weeks.

    savage, vanny and gsnyder67 like this post

    jrdunn96
    jrdunn96


    Number of posts : 691
    Location : Cashion, OK
    Age : 62
    Registration date : 2016-01-01

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by jrdunn96 Mon Nov 01, 2021 6:12 pm

    Nice work! Do you hire out?
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Tue Nov 02, 2021 12:23 pm

    Maybe... But I'm so slow that at $10 per hour everything will end up costing $10,000.

    Seth G, gsnyder67 and jrdunn96 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Sun Nov 21, 2021 1:45 pm

    OK.  Back to the P'up progress.

    Here's the latch I used for the bed/hood.  It's one of those generic VW latches sold for hot rods.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210415

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210417

    I have the release cable tucked up under the passenger bed side.  Don't have a pic of that yet.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210416

    savage, dix, Seth G and gsnyder67 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Long time no update

    Post by 13-ball Thu Nov 10, 2022 2:56 pm

    Time flies.

    It's been about a year since I updated this site with progress on the Econo Pup.  I was going great guns when locked down.  Now that we're allowed to lead normal lives again other priorities keep getting in the way!

    I'll drop a few pics here the next few days to get back to where I'm at currently.

    Here I got an open box steering column for a good price.  Figured the warranty was useless since I was going to cut it up immediately.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211111
    Cut to length.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211110
    Drilled out the dimples holding the plastic bushing in and popped it out.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211112

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211115
    This is a roll cage accessory mount I modded and welded to the column drop to hold the column in place.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211114

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211113
    This floor mount also will hold the vinyl boot to cover up the mechanicals.

    dix and Otto like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Fri Nov 11, 2022 12:08 pm

    Getting the seats installed.

    I had some other seats from a Fiero in there first.  They fit pretty well but I didn't like the look.

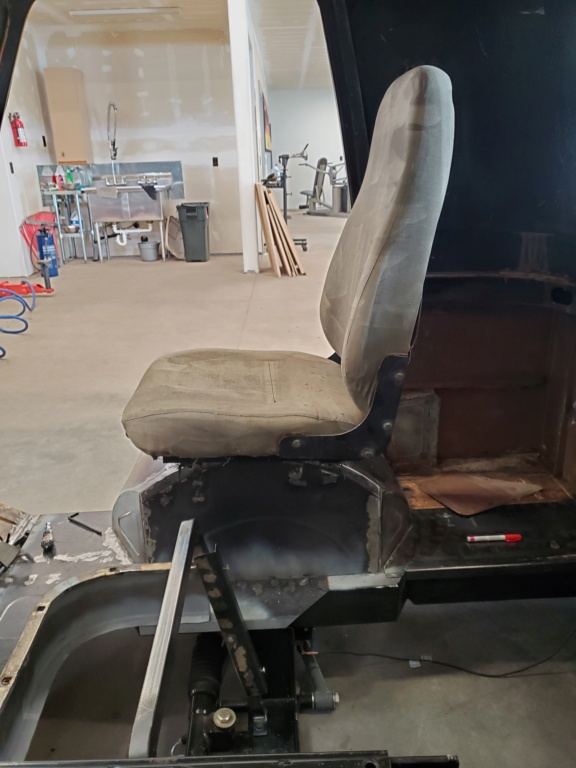

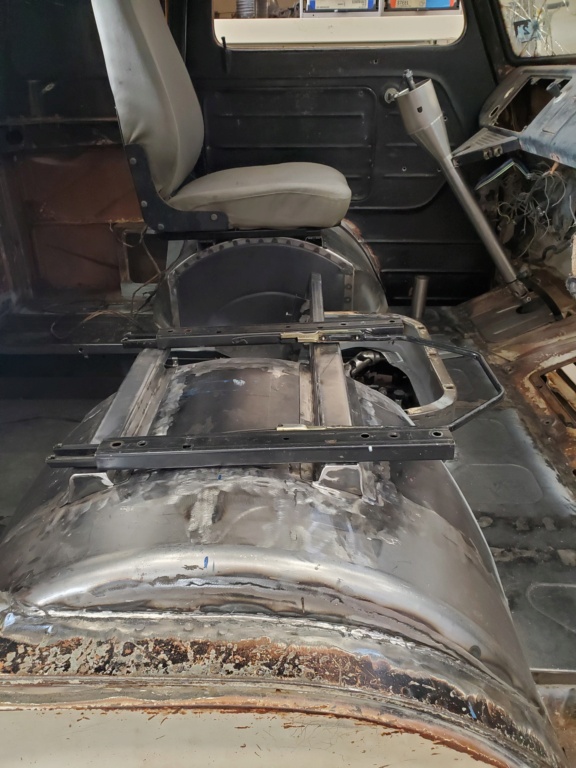

    These are from a Humvee - a Craigslist freebie!  I like them more - hoping the upholsterer can reshape them a little to look more 1960's stock.  Finding seats that are narrow and thin is a challenge.  I think the top of my head is going to be on the headliner.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211120

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211119

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211116

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211118

    1961 Rust-O-Mod Pickup Build thread - Page 3 20211117

    dix and gsnyder67 like this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Fri Nov 11, 2022 1:28 pm

    There's what the Fiero seats looked like.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20210128

    dix likes this post

    dix
    dix
    Moderator 1st Class
    Moderator 1st Class


    Number of posts : 8747
    Location : pittsburgh pa
    Age : 67
    Registration date : 2008-05-29

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by dix Sat Nov 12, 2022 2:34 am

    great work ,great job.


    _________________
    still vannin since 1974
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Power Window Switches

    Post by 13-ball Sun Nov 13, 2022 10:37 am

    I've spent a ton of time putting one piece glass and power regulators in the doors.  Gotta say it has not been my favorite part of this project.

    I bought a kit with glass, channel run, regulators and switches.  Should have bought the parts individually because I've ended up getting different switches and channel run and beltline fuzzies.  Still have work to do...

    The switches were especially disappointing.  Don't you just hate when you spend hours making things fit and the expensive thing you paid $$$$ for turns out to be crap?

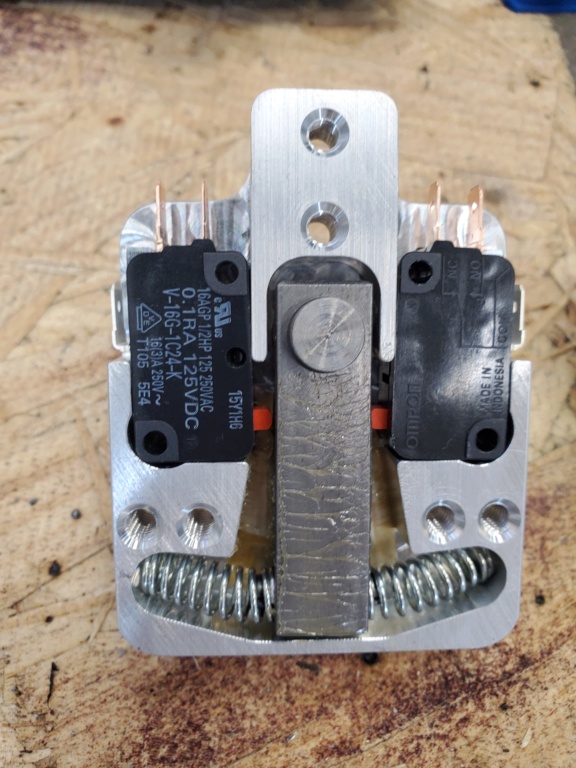

    The original switches were the Autoloc type you see for sale everywhere.  They're not inexpensive but they are cheap.  I replaced them with Nu-Crank switches from Nu-Relics Power Windows.  It's a night and day difference in quality.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221115

    The shafts on the Chinese switches wouldn't even fit and I spent a long time with a triangular file working the splines until the crank handles would go on.  The shafts on USA switches are precise.

    The little micro switches appear to be better quality but I can't say for sure if they're better or not.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221111

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221114

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221110

    gsnyder67 likes this post

    vanny
    vanny
    Moderator


    Number of posts : 14777
    Location : Ashburnham, MA
    Age : 65
    Registration date : 2012-09-22

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by vanny Sun Nov 13, 2022 11:51 am

    Good information for others who decide to follow your footsteps. At-A-Boy for saving the next person from having to deal with inferior made products. Like where you’re going with this project!


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow

    gsnyder67 likes this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Power window switch brackets

    Post by 13-ball Thu Nov 17, 2022 11:22 am

    Here are the brackets I made to have the power window switches use the original mounting holes in the doors.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221117

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221118

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221116

    gsnyder67 likes this post

    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Glove Box Door Installation

    Post by 13-ball Fri Nov 18, 2022 10:47 am

    Scored a glove box door off Ebay.  Psyched it's very straight and came with hinges, locking latch (but no key) and stop cable.

    I went a couple days trying to figure out how it mounts correctly.  Couldn't find any good pictures online.  Somewhere I read that many early Econos were never fitted with a glove box door.  It turns out that this truck never had one and it was necessary to cut back the flange where the hinges go.


    1961 Rust-O-Mod Pickup Build thread - Page 3 20211121
    Need to cut away where the yellow marks are.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221119
    Now those hinges will work!

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221122
    Fits pretty good.

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221121
    hammerinhank
    hammerinhank


    Number of posts : 14
    Location : Charlevoix, Michigan
    Registration date : 2018-12-11

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Scott's IFS fit up

    Post by hammerinhank Thu Nov 24, 2022 7:00 am

    Haven't been on the site for a while.  Finally getting to my Scott's IFS install.  Got the floor and frame rails cut out and have the first dry fit of the suspension.  I'm using coil overs, not aiming for the slammed on the ground look.  I noticed you welded your sub frame in flush to the top of theexisting unibody frame rails.  I've seen others that welded in flush to the bottom of the rail and you end up with a gap the floor.  Your way makes more sense.  Any recomendations on how to square the suspension up to the body and between the wheel well before I start welding?

    1961 Rust-O-Mod Pickup Build thread - Page 3 20221111
    13-ball
    13-ball


    Number of posts : 87
    Location : moab, ut
    Registration date : 2020-07-23

    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by 13-ball Thu Nov 24, 2022 9:38 am

    For for the vertical placement you should mock it all up with the wheels and tires you'll be running.  The bottom control arm should be pretty much level at ride height.  If you put the IFS crossmember higher the body will be slammed toward the ground.   If it's put in lower (ie. gap to the floor) the body will ride higher.  You should worry less about the gap and make sure it rides at the height you like.  You can add support to the floor aferwards.  Estimating the sag with no engine in it is probably more art than science.  Air bags make that easier to fudge.  The coilovers will require more forethought.

    For squaring it to the body....  I pulled measurements from all over.  Probably 1000 times!   I think I got the best results by measuring between the front control arms and the rear axle or the leaf spring mount holes.  Figured the further outboard measurements to be more accurate.  Also figured it was more important to get the front and rear axles parallel to eachother than to anything on the body.  It was difficult for me to decide where the wheel should center front to back in the wheelwell opening.   Some days I think I nailed it and others not.  It also looks different depending on if it's dropped to the ground or aired up.

    Tack it all over the place but don't weld it.  I always succumb to the compulsion to weld things up.  Weak willed and impatient!  Don't do it!!  Once it's tacked up give it a few days to look at it from all angles and remeasure 1000 more times.  You might change your mind after sleeping on it.

    Sponsored content


    1961 Rust-O-Mod Pickup Build thread - Page 3 Empty Re: 1961 Rust-O-Mod Pickup Build thread

    Post by Sponsored content


      Current date/time is Mon Jul 15, 2024 6:11 pm
