by EarlyLover Wed Mar 21, 2018 9:25 amI may be confused but are the rubber seals still available through hitech glazing? I can't seem to find them on their site.
+13
VANagain
Lazarusvan
Magic Potion
jeffnjen
Scott
Xelmon
Joe Van
bletman
GMman
Twinpilot001
Digz
Space Truckin
m1dadio
17 posters
rubber parts
EarlyLover- Number of posts : 19
Location : Chicago, Illinois
Registration date : 2017-10-23
m1dadio- Chevy Guru
- Number of posts : 1778
Location : north saanich
Registration date : 2008-10-06
you don't have to cut the holes larger in that heater tube grommet. it fits as purchased.
The hinge gaskets from Steel rubber are one size, the front van door hinges are a smaller size but the larger gasket will fit in a just compress and look good.
I have been told the hinge gaskets from Clarks are crap.
"is this item the gasket needed for the exterior cargo door handles ?
Door handle escuteon gasket Clarks C6530 $1.50 e thanks"
Yes
M1D
The hinge gaskets from Steel rubber are one size, the front van door hinges are a smaller size but the larger gasket will fit in a just compress and look good.
I have been told the hinge gaskets from Clarks are crap.
"is this item the gasket needed for the exterior cargo door handles ?
Door handle escuteon gasket Clarks C6530 $1.50 e thanks"
Yes
M1D
GiraffeSquad- Number of posts : 12
Location : N.C.
Registration date : 2014-04-09
Ok so Im ordering all the rubber to redo my 2nd gen 69 g10 108wb. What exactly are these items from clarks and how many of each do I need? These are the only ones I'm unsure about. Thanks for any help!
Door button O ring Clarks C565 $.70 ea (is this for the black button on the side and rear door handles?
Door lock gasket Clarks C566 $2 ea (just for round lock cylinders on the doors? So need 4?)
Door handle (small) Clarks C1550 $1.40 ea
Door handle (large) Clarks C1549 $1.55 ea
Door handle escuteon gasket Clarks C6530 $1.50 ea
Door button O ring Clarks C565 $.70 ea (is this for the black button on the side and rear door handles?
Door lock gasket Clarks C566 $2 ea (just for round lock cylinders on the doors? So need 4?)
Door handle (small) Clarks C1550 $1.40 ea
Door handle (large) Clarks C1549 $1.55 ea
Door handle escuteon gasket Clarks C6530 $1.50 ea
ditdater- Number of posts : 590
Location : louisville ky
Registration date : 2010-11-06
is this item the gasket needed for the exterior cargo door handles ?m1dadio wrote:Rubber parts: Dec 2014
Item Manufacturer/Seller part number price USD$
W/S gasket 1st gen Auto Obsession WBL-653 $40
W/S gasket 2nd gen Auto Obsession WBLD693 $58
Vent window main seal Steel Rubber Prod 70-2115-55 $107 pr
Vent window Division post Steel Rubber Prod 70-2116-56 $58 pr
Front door seals Steel Rubber Prod 70-2584-72 $95 pr
Cargo door seal Steel Rubber Prod 70-2585-72 $128 one set
Dog house seal Steel Rubber Prod 70-3531-88 $16
Vent window setting channel Steel Rubber Prod 70-2170-57 $3 /ft
Hinge gaskets Steel Rubber Prod 60-0659-69 $35 (4) one door
Hinge gaskets Clarks C9946 $ 8 ea
Door bumpers Steel Rubber Prod 33-0496-71 $2 (2/door)
Window bottom bumpers Steel Rubber Prod 33-0531-42 $3 (1/door)
Glove box door bumper Steel Rubber Prod 33-0128-88 $1 (need 2)
Glove box door bumper Clarks C853R $6 pr
Window fuzzy kit Steel Rubber Prod 80-0788-59 $105 2 door set
Brake/clutch pedal Steel Rubber Prod 70-3531-88 $23 pr
Swing out window seal Restoration specialties VSG001 $1.50 / ft
Door button O ring Clarks C565 $.70 ea
Door lock gasket Clarks C566 $2 ea
Door handle (small) Clarks C1550 $1.40 ea
Door handle (large) Clarks C1549 $1.55 ea
Door handle escuteon gasket Clarks C6530 $1.50 ea
Door handle black button Clarks C5851 $9.00 ea
Door black button screw Clarks C5852 $0.90 pr
Division bar rivets Clarks C7664 $5 set
License plate bumper Clarks C532 $3 ea
Vent window pivot rivet Clarks C2701 $3.35 ea
Ash tray bumper Clarks C2563A $2 ea
The following three items in Canada at 25% or less of the USA price. (And they sell to the US). are in Canadian dollars, at this time subtract about 17% to get the USD price.
https://www.hitechglazing.com/catalog/40001
Fixed window rubber HighTech Glazing AS-1216 $60 (50 ‘roll)
Locking strip HighTech Glazing AS-789 $16 (50’roll)
Division bar SS bead. HighTech Glazing Y658X96 $35 (96")
Sometimes the division bar can be cut in two 48” pieces to reduce shipping costs.
Less then 4’ needed for each window.
From Smiley’s list
Bat box lid gasket Dan’s Classic CD43-311 $4.20 ea
Brake pedal rubber American Classic FL108 $2.50 ea
Glove box lock gasket Classic Parts 22-412 $0.75 ea
Door bumpers (4) Classic Parts 18-321 $.99 ea
Window bumpers (2) Classic Parts 18-360 $.75 ea
Note: Steel Rubber Products are made in the USA. The items from HighTechGlazing are either made in USA or Made in Canada.
Other similar items found cheaper are off shore (usually made in China). I have found the off shoe items don’t fit as well as the made in North America ones.
M1D
Door handle escuteon gasket Clarks C6530 $1.50 e thanks
ditdater- Number of posts : 590
Location : louisville ky
Registration date : 2010-11-06
is steel front door window rubber kit the same as this one on ebay ? listed under 1964-1970 2-DOOR CHEVY VAN WINDOW BELTLINE WEATHERSTRIP KIT 6 PIECES
m1dadio- Chevy Guru
- Number of posts : 1778
Location : north saanich
Registration date : 2008-10-06
works good
I had to gently squeeze the tubes closer to each other
I had to gently squeeze the tubes closer to each other
ditdater- Number of posts : 590
Location : louisville ky
Registration date : 2010-11-06
THANKS
Lazarusvan- Number of posts : 1293
Location : Charleston, South Carolina
Age : 50
Registration date : 2011-02-22
Just received my order from Steele Rubber. The customer service was fantastic. They gave me free shipping even though I didn't know they had the promotion and refunded additional $31.00 after signing me up as a corporate account (no idea why.)
I ordered most everything they sell for our vans (vent window parts were mailed elsewhere and not shown.)
The door seals are impressive since they are contoured to fit the corners. The cargo doors have a metal extension and hole to secure them.
If you order over $500, you get $15% off. That made a huge difference. It hurts spending this for seals, but gotta have them to make this comfortable. Free shipping promo helpful as well. (They even shipped my vent window seals to a different address than the rest for no extra cost.)
Here are updated Steele Rubber prices from M1D list as of Jan. 2015:
70-211-55 Vent Window Weatherstrip $109/pr.
70-2115-56 Vent Window Division Weatherstrip $60.30/pr.
70-2584-72 Front Door Seals/Set $99.50/pr.
70-2585-72 Cargo Door Seal/Set $134.50/pr.
70-3531-88: Dog House Seal $16.80
70-2170-57: Vent Window Setting Channel $3.20/ft
60-0659-69 Cargo Door Hinge Gaskets/Grommets $37.10/set of 4 (one set per door)
33-0531-42 Window Bottom Bumpers $2.90 each (1 per door)
33-0128-88 Glove Box Bumpers $.90 each (2 needed)
80-0788-57 Window Felt Fuzzy Kit $109.60/pair
WBL-653 Auto Obsession 1st Gen. Window Gasket is now $47.00 plus $15.00 for shipping.
Parking Light Gasket Link from Brothers Truck: https://www.brotherstrucks.com/prodinfo.asp?number=PLA57GS&qty=2
I ordered most everything they sell for our vans (vent window parts were mailed elsewhere and not shown.)
The door seals are impressive since they are contoured to fit the corners. The cargo doors have a metal extension and hole to secure them.
If you order over $500, you get $15% off. That made a huge difference. It hurts spending this for seals, but gotta have them to make this comfortable. Free shipping promo helpful as well. (They even shipped my vent window seals to a different address than the rest for no extra cost.)
Here are updated Steele Rubber prices from M1D list as of Jan. 2015:
70-211-55 Vent Window Weatherstrip $109/pr.
70-2115-56 Vent Window Division Weatherstrip $60.30/pr.
70-2584-72 Front Door Seals/Set $99.50/pr.
70-2585-72 Cargo Door Seal/Set $134.50/pr.
70-3531-88: Dog House Seal $16.80
70-2170-57: Vent Window Setting Channel $3.20/ft
60-0659-69 Cargo Door Hinge Gaskets/Grommets $37.10/set of 4 (one set per door)
33-0531-42 Window Bottom Bumpers $2.90 each (1 per door)
33-0128-88 Glove Box Bumpers $.90 each (2 needed)
80-0788-57 Window Felt Fuzzy Kit $109.60/pair
WBL-653 Auto Obsession 1st Gen. Window Gasket is now $47.00 plus $15.00 for shipping.
Parking Light Gasket Link from Brothers Truck: https://www.brotherstrucks.com/prodinfo.asp?number=PLA57GS&qty=2
Lazarusvan- Number of posts : 1293
Location : Charleston, South Carolina
Age : 50
Registration date : 2011-02-22
I don't think I saw these on the original list. Didn't realize the existed or were needed. Curious if anyone is actually using them on their vans.
https://www.brotherstrucks.com/prodinfo.asp?number=PLA57GS&qty=2
https://www.brotherstrucks.com/prodinfo.asp?number=PLA57GS&qty=2
Russell- Number of posts : 697
Location : Chula Vista, Ca.
Age : 63
Registration date : 2015-12-08
Thanks for the list, I need some of these.
VANagain- Number of posts : 1040
Location : San Diego, CA
Age : 62
Registration date : 2008-05-16
Great list, M1! And big thanks for the link to the heater tube grommet!! I've been wondering for a long time if we could ever find new ones. In your photo, the holes look too small, but from the bottom, it looks like they are set up to knock out to larger diameters. Can you confirm this?

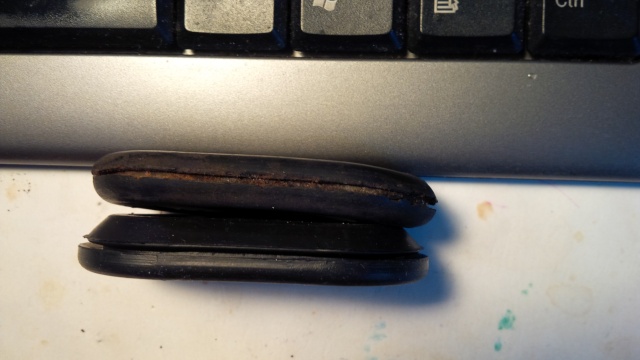

Closeup here.
Here's the page on Cruiser Corps:
http://www.cruisercorps.com/review/product/list/id/964/
Closeup here.
Here's the page on Cruiser Corps:
http://www.cruisercorps.com/review/product/list/id/964/
Lazarusvan- Number of posts : 1293
Location : Charleston, South Carolina
Age : 50
Registration date : 2011-02-22
Ordering essentially every rubber piece for the van, so a few updates.
1) Auto Obsession window seal is now $47.00 and shipping is $15.00.
I asked Steele Rubber if they offered any discounts on large orders. They in fact do, and will knock 15% off an order of over $500. That is a nice savings. They offer 10% off at a certain value (not sure price point, so ask.)
I asked if they offered group discounts for van site, etc members. She said "no," and that she did not anticipate part prices going down any time soon. She said they had indeed realized there was a need for van rubber parts even though she was personally aware that many had been destroyed during Cash for Clunkers.
She said the typical process takes 18-24 months from start to finish once they determine they will manufacture a part. All parts are built off originals using aluminum forms. It take a while to recoup that cost, therefore prices are high. She also said she knew they were the only ones carrying van rubber as a whole, so supply and demand in effect.
And...they order out fuzzies from another company. She said it takes 6 weeks to get them because of that and the fact the fuzzy material is hard to come by. Had no idea. Either way, order yours now if you need them because six weeks can hold up your project if you are close to completion.
(This thread posts shows new to old posts in reverse, for some reason.)
1) Auto Obsession window seal is now $47.00 and shipping is $15.00.
I asked Steele Rubber if they offered any discounts on large orders. They in fact do, and will knock 15% off an order of over $500. That is a nice savings. They offer 10% off at a certain value (not sure price point, so ask.)
I asked if they offered group discounts for van site, etc members. She said "no," and that she did not anticipate part prices going down any time soon. She said they had indeed realized there was a need for van rubber parts even though she was personally aware that many had been destroyed during Cash for Clunkers.
She said the typical process takes 18-24 months from start to finish once they determine they will manufacture a part. All parts are built off originals using aluminum forms. It take a while to recoup that cost, therefore prices are high. She also said she knew they were the only ones carrying van rubber as a whole, so supply and demand in effect.
And...they order out fuzzies from another company. She said it takes 6 weeks to get them because of that and the fact the fuzzy material is hard to come by. Had no idea. Either way, order yours now if you need them because six weeks can hold up your project if you are close to completion.
(This thread posts shows new to old posts in reverse, for some reason.)
Magic Potion- Number of posts : 148
Location : Hastings Nebraska
Registration date : 2015-03-13
Window fuzzy kit Steel Rubber Prod 80-0788-59 $105 2 door set
I called Steel Rubber because I could not find that # and it is actually 80-0788-57. It's description is for a 64-70.
I called Steel Rubber because I could not find that # and it is actually 80-0788-57. It's description is for a 64-70.
m1dadio- Chevy Guru
- Number of posts : 1778
Location : north saanich
Registration date : 2008-10-06
Heres a little score for our vans.

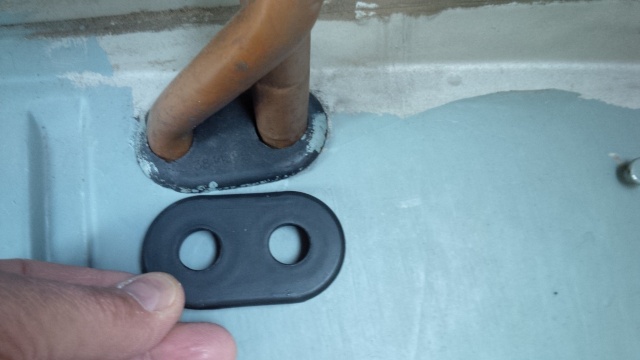

found a replacement heater tube grommet.
same size and shape, not likelyto find anything closer than this.
Cruiser corps part number 525-351
http://www.cruisercorps.com/
m1d
found a replacement heater tube grommet.
same size and shape, not likelyto find anything closer than this.
Cruiser corps part number 525-351
http://www.cruisercorps.com/
m1d
Digz- Number of posts : 3794
Location : United States Six Lakes MI
Registration date : 2008-05-17
That's what works. I have gotten several of them. I get them through Arrowhead Truck parts but any place is good as far as I know. Price should be around the 40$ mark.jeffnjen wrote:W/S gasket 1st gen Auto Obsession WBL-653 $40
this part comes up as a truck part, are they interchangeable ?
jeffnjen- Number of posts : 26
Location : el paso
Registration date : 2015-03-29
W/S gasket 1st gen Auto Obsession WBL-653 $40
this part comes up as a truck part, are they interchangeable ?
this part comes up as a truck part, are they interchangeable ?
Scott- Number of posts : 1651
Location : Anoka, MN
Age : 53
Registration date : 2008-05-20
Thanks for the list M1D,
I just placed an order for the cargo door seals, and a doghouse seal.
Wife told me to order them for my birthday gift from her.
I just placed an order for the cargo door seals, and a doghouse seal.
Wife told me to order them for my birthday gift from her.
m1dadio- Chevy Guru
- Number of posts : 1778
Location : north saanich
Registration date : 2008-10-06
thank you Xelmon; number corrected.
m1D
m1D
Xelmon- Number of posts : 361
Location : Smell-A, CA
Registration date : 2011-10-11
Way cool, M1D, thanks for all of those!
That also confirms it, the stuff Dan's Classic sells up in Portland, OR is quality stuff.
... Actually, minor correction:
Vent window main seal Steel Rubber Prod 70-211-55 is actually 70-2115-55
That also confirms it, the stuff Dan's Classic sells up in Portland, OR is quality stuff.
... Actually, minor correction:
Vent window main seal Steel Rubber Prod 70-211-55 is actually 70-2115-55
Digz- Number of posts : 3794
Location : United States Six Lakes MI
Registration date : 2008-05-17
I did all that and more , still nuthin'. Know where it all is anyway, just nice to have a list , LOL
Ha , Eureka ! Highlight/Copy to Notebook/Print
Ha , Eureka ! Highlight/Copy to Notebook/Print
Joe Van- Moderator 1st Class
- Number of posts : 4619
Location : Ocala fl
Registration date : 2012-10-11
I got it printed also..!!!..
.."Great Job" m1dadio Thanks alot... .This list saves a lot of searching...
.."Great Job" m1dadio Thanks alot... .This list saves a lot of searching..._________________
1966 GMC Handivan "Panel"....1975 Chevy Van G10 "Panel"....1991 Chevy Van G20 "Conversion"
bletman- Number of posts : 50
Location : Northern Virginia
Registration date : 2011-12-27
Awesome list.....I just spent $50 for stuff I had no idea where to get.
Space Truckin- Number of posts : 1270
Location : Upland,Ca
Age : 68
Registration date : 2009-10-17
Twinpilot001 wrote:Printed for me =good----i just highlighted all the list & printedit!!
Thanx-----M1
^^^what he said^^^X2
Twinpilot001- Number of posts : 6186
Location : spokane ,Wa.
Registration date : 2009-09-28
Try this =works for me=== right click/hold down= what u want printed-scroll down to bottom of page- then release- select print- should then print good only the highlighted page. Some printers have also after the highlight a "print preview" select that & then select print! Hope that helps. By the way i also have only =print in black selected!
GMman- Number of posts : 798
Location : Prairie Du Chien Wisconsin
Registration date : 2014-10-14
My Cannon printer has a print preview page and the list comes out blue on white.
Similar topics
» So you think you have safe tires?
» Help with Rubber Parts List
» 67G10 Rubber Parts??
» Parts,parts,& more parts=dodge, econo & chev stuff
» Sheet metal parts This buisness sells many different metal replacement parts for older cars trucks!! I know i have seen some van parts for our vans here from him!1 If it isnt listed - email or call them!!
» Help with Rubber Parts List
» 67G10 Rubber Parts??
» Parts,parts,& more parts=dodge, econo & chev stuff
» Sheet metal parts This buisness sells many different metal replacement parts for older cars trucks!! I know i have seen some van parts for our vans here from him!1 If it isnt listed - email or call them!!
|
|
|
