    D & D Disc brake conversion tips- what the forums don't mention

    Strato1
    Strato1


    Number of posts : 14
    Location : Bel Air, MD
    Registration date : 2017-02-07

    D & D Disc brake conversion tips- what the forums don't mention Empty D & D Disc brake conversion tips- what the forums don't mention

    Post by Strato1 Mon Mar 13, 2017 11:28 am

    I just completed the D&D brake conversion. Overall I'm very satisfied with the net result, the van stops nice and straight and just as fast as a modern vehicle. With a complete rebuilt suspension and steering box and new king pins, it feels very stable and nice.

    This is not the first conversion I have done, it is actually my 4th (a 49 Ford, a 55 F-100, a 58 Desoto and now my 65 Econoline), so I'm no novice. While the kit claims to be an easy install (and for parts of it, it is easy) there are some things that should be mentioned in the kit that would save a lot of trouble for some. I have asked Trevor from D&D to please make these notes to the installation instructions.

    Master Cylinder By far the biggest pain in the butt is the master cylinder. First of all there are two master cylinder styles (maybe more) for the Bronco II and because they are not exactly flying off the shelves it took me 5 trips to parts stores just to find a second one when I was having issues with the first one. (You have to pop the resevoir off to tell if you have the right one or not- the difference is in the inner diameter of the rubber fittings- so you need to be there in person to test it- a phone call will not help you).

    I live in the Baltimore area and there are no O'rielly's or Carquests near me so I bought my MC from AutoZone and it was a Duralast. We do have Advance Auto's here who own Carquest, but the part number pulls up as a power steering pump, and the only part # they have for the bronco II is discontinued so go figure.

    The duralast unit comes with a resevoir installed that easily pops out. However this unit will NOT work. The fittings do not seat fully into the rubber and it will leak everywhere.

    The only other MC I was able to find came from NAPA. When you ask around, some parts stores will ask if you have manual or power brakes. D&D makes no distinction on their website. When I finally got in touch with Trevor from D&D, he told me it does not matter, so that info will save you some time searching. Manual or power brakes, it doesn't matter. The NAPA master has the same last 4 digit number as the carquest or Orielly part, I don't have the Nappa part # in front of me.

    The NAPA MC also comes with a resevoir that is removable, and the fittings do fit, but not perfectly. However you can use the resevoir and save yourself from buying a remote mount from Tilton that leaks and has no gasket in the cap. So BONUS there but you will have to make a bracket. In addition to the bracket, I simply epoxied two fittings to the resevoir (see pics below).

    D & D Disc brake conversion tips- what the forums don't mention Mc_210

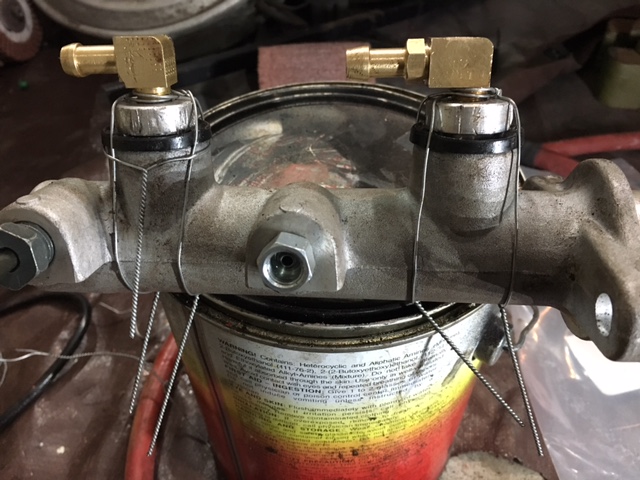

    Remote resevoir fittings To get the supplied aluminum kit fittings to stay in and tight, I used a 1 ton arbor press to push them in, and while under pressure, I used some safety wire to hold them in place, otherwise they want to continue to pop out. (see pics below)

    D & D Disc brake conversion tips- what the forums don't mention Mc_110

    Remote resevoir hoses-The kit says to simply get some "brake fluid resistant hose". Nobody carries this and I wish the instructions would have made this more clear. Fuel line will NOT work. I'm going to save you all a lot of aggrvation and tell you that you need to order two 30" hoses from Summit Racing the part number is WIL-220-3357.  Knowing this ahead of time will save you three days and from having to re-do this (I used fuel line first time not knowing that was the wrong thing and the parts store idiots said it was resistant to brake fluid- it is not!)

    Fittings- In addition to the supplied fittings, you have to get your own. Again I wish the part numbers were supplied as in my opinion there is only one way these will work. It took me a couple of evenings after work to finally get a workable combo. I wish I had kept better notes of what those fittings were and If I can figure out which fittings I purchased I would supply that info (and may add it after this post if I can find the part numbers).

    In the image aboveI show two 90 degree bends. That will not work for the one above the front brake port as it will hit the bracket. You could maybe cut the top bar of the bracket to make it fit. What I ended up doing was using a 45 degree fitting and then used the same nipple fitting in the photo. You can then run the hose up over the bracket top support and avoid any kinks in the hose. The 90 that I show works great for the rear port. Unfortunately I did not take a pic of the final set up and its really hard to photograph when intalled.

    Length matters when it comes to the fittings- shorter is better I first used some fittings pointing straight up that I got from the parts store that were too long, The hose, when attached, makes such a tight 90 bend that it seemed like the fluid would be pinched off. Even with a shorter barbed fitting, you are asking a lot of the rubber to bend in such a tight spot. The single 90 and the 45 with the shortest barbed fitting is the way to go.

    My 65 Econo needed all of the cutting that some vans need.

    I have read about  the hubs needing to be machined. I did not do that. When I first test fit the rotos and calipers I thought I had instantly regretted that decision as the whole thing was super wobbly and would move the pads side to side. On a whim I just put in all the lug nuts and torqued them down repeatedly as if there was a wheel on there, it took a couple of sequnces of tightening but it pulled everything in nicely and the wobbling was gone.

    You need to bench bleed the master while it is installed. There really is no other way because you will have to rotate the MC to get everything in place. It is really a pain to bench bleed one on the vehicle because it takes more hands than you were born with.

    Residual Valves -I could never confirm if my MC had residual valves or not. It probably does but I went a head and ran a 2 lb front and a 10lb rear. It doesnt hurt and if anything it might help the pedal travel. The kit says you will have increased pedal travel, I cannot tell a difference and it might be beacuse of the residual valves, not sure.

    Brake hoses. When I first mocked up the set up I though my god these hoses are going to rip right off as they seemed short. Another day lost and another call to Trevor to confirm if maybe I had the wrong hoses and he said that is another problem some people run into. I have yet to read this in any if the froum posts so I'm posting it here. In some cases, you will have to re-locate the brake hose bracket. It unbolts with one bolt. I ended up welding mine on, but if you are not a welder you could probably drill and tap the frame. In my case they had to come forward and down to where they are flush with the frame. There is a reinforcement built into the frame that has two ridges on it. The brake tab locks into this ridge on the back. You will need to relocate your brackets so that the bend lines up with the ridge on the other side closer to the axle. I could take a pic if need be.

    Hopefully this will save the next guy some aggravation. Please do not take this as a knock against D&D brakes, as it is not intended to be. I am very thankful that somebody else figured out how to make a workable kit so that I don't have to. As I said this is my 4th kit and the net result is worth every penny, but of the 4 different vehicles I have done, this kit was the hardest to do, so please take these tips as they are intended to be, just tips to help the next guy.

    ratrider and JohnnyAppleseed like this post

    vanny
    vanny
    Moderator


    Number of posts : 14775
    Location : Ashburnham, MA
    Age : 64
    Registration date : 2012-09-22

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by vanny Mon Mar 13, 2017 12:00 pm

    Thanks for passing along the information, Strato! This site is not only a good site to find out how to do something, but also a good place to find out what NOT to do so that you can avoid aggravation...we all get plenty of that in our daily lives...

    Once again, thanks for posting!!! cheers What a Face


    _________________
    “The future will soon be a thing of the past."

    http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
    jrdunn96
    jrdunn96


    Number of posts : 690
    Location : Cashion, OK
    Age : 62
    Registration date : 2016-01-01

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jrdunn96 Mon Mar 13, 2017 6:29 pm

    Strato,
    Thanks for all the info. I'll keep this handy when I get there. I'm so slow, it'll be a while.
    Jim
    Wolfster
    Wolfster


    Number of posts : 140
    Location : Omaha, Ne
    Registration date : 2016-08-27

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by Wolfster Tue Mar 14, 2017 5:11 am

    I plan on buying the complete kit thru D&D. Talked with him on the phone on a Friday and the wife totaled her car on Sunday, so had to delay the purchase for a few weeks while we got all the insurance finances worked out. Nebraska kills you on sales and "personal property tax".

    I'm hoping the complete kit is complete.
    jdlaugh
    jdlaugh


    Number of posts : 298
    Location : Tulsa, OK
    Registration date : 2013-03-18

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jdlaugh Tue Mar 14, 2017 5:46 am

    I just bought the caliper brackets from D&D and purchased everything else from O'Reillys. I also found the brake hoses were way short for my '65 pickup. I eventually welded new brackets to the frame.

    I didn't do the 2 lb pressure valve and have WAY to much pedal travel, so I'll be adding that soon.

    I got creative on the master cylinder and used one from a early 90s (94?) Nissan Quest. It was designed for use with a remote reservoir. It was a little awkward the way the brake lines attach, but made the remote reservoir easier. I, too, made the mistake of using fuel hose, which begins weeping brake fluid almost immediately.

    I'm not sure if the Nissan MC would work with the D&D mounting system. I built my own.

    D & D Disc brake conversion tips- what the forums don't mention Master15


    Last edited by jdlaugh on Tue Mar 14, 2017 9:47 am; edited 1 time in total
    Seth G
    Seth G
    Vintage-Vans Listings Manager
    Vintage-Vans Listings Manager


    Number of posts : 2086
    Location : Anacortes, WA
    Age : 50
    Registration date : 2013-04-24

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by Seth G Tue Mar 14, 2017 9:17 am

    Mid 1980's monte carlo hose for front disc is a much better fit. It's what I used for my conversion.
    jifop
    jifop


    Number of posts : 65
    Location : Hertfordshire, UK
    Registration date : 2016-05-22

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jifop Mon May 01, 2017 2:24 pm

    jdlaugh wrote:I just bought the caliper brackets from D&D and purchased everything else from O'Reillys. I also found the brake hoses were way short for my '65 pickup. I eventually welded new brackets to the frame.

    I didn't do the 2 lb pressure valve and have WAY to much pedal travel, so I'll be adding that soon.

    I got creative on the master cylinder and used one from a early 90s (94?) Nissan Quest. It was designed for use with a remote reservoir. It was a little awkward the way the brake lines attach, but made the remote reservoir easier. I, too, made the mistake of using fuel hose, which begins weeping brake fluid almost immediately.

    I'm not sure if the Nissan MC would work with the D&D mounting system. I built my own.

    D & D Disc brake conversion tips- what the forums don't mention Master15

    Can you show us what you built?
    jdlaugh
    jdlaugh


    Number of posts : 298
    Location : Tulsa, OK
    Registration date : 2013-03-18

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jdlaugh Mon May 01, 2017 2:49 pm

    This is the only picture I have from the install. The reservoir is at top hanging in front of the radiator. This was before I installed the hoses. Made mount for the master out of heavy wall one-inch square stock -- basically just stuff I had in my scrap pile.

    Click on the picture to see the whole thing.

    D & D Disc brake conversion tips- what the forums don't mention Brake_10
    jdlaugh
    jdlaugh


    Number of posts : 298
    Location : Tulsa, OK
    Registration date : 2013-03-18

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jdlaugh Fri Jun 30, 2017 10:05 am

    The remote fittings on the Nissan Quest/Mercury Villager master cylinder (from early 90s to early 2000s) supposedly will also work with any Ford master cylinder that uses a top-mount reservoir. I haven't tried it personally, but the part that goes into the MC looks the same as the Ford reservoir. Might be worth a trip to the JY to check. Pry off the fitting from a Quest and find an old Ranger, pop of the reservoir, and see if it fits....

    Pics of the Quest/Villager MC and fittings

    D & D Disc brake conversion tips- what the forums don't mention Quest_10

    D & D Disc brake conversion tips- what the forums don't mention Nissan10
    jifop
    jifop


    Number of posts : 65
    Location : Hertfordshire, UK
    Registration date : 2016-05-22

    D & D Disc brake conversion tips- what the forums don't mention Empty Re: D & D Disc brake conversion tips- what the forums don't mention

    Post by jifop Sun Jan 21, 2018 2:01 am

    Id like to add to this thread if I may and share my experiences with the kits aswell. I've also put this information here with photos http://iamanerd.org.uk/?p=524

    Overall I am very pleased with the kits, my van now stops straight and perfectly everytime I feel so much safer driving it however the instructions are somewhat lacking and miss a few key points.

    General Notes:

    I chose to powder coat my brackets, they are well made items but unpainted and personally I don’t want mine rusting away under the van.

    DO NOT USE A PRESS for any of the installation, it isn’t needed and will do more damage than good.

    Disk conversion kit:

    1. If you press the studs out of the drums you risk destroying the hubs, so remove the drums you will need to cut the “Swedging” from around the studs, to do this I used a bench drill with a 5/8″ hole cutter and the pilot drill removed, I ran the stud inside the hole saw and it cut the studs out perfectly. But make sure you don’t go too far as you will either damage the hubs or shatter the hole saw.

    Once these are drilled out tap the hub from the drum with a hammer.

    2. It is imperative that the holes in the chevy disks are 5/8″ unfortunately due to manufacturing tollerances this cannot be assumed so ream or drill out these holes to 5/8″ (16mm) mine were close but not all uniformed. The kit would not assemble correctly without drilling these out.

    3. Do not press the new studs in, tap them in with a hammer, in fact you don’t need a press for this kit at all! If you press them in you risk damaging the hubs and shattering the new disks.

    I would suggest laying a wheel on the bench, assembling the components (studs, disks and hubs) tapping the studs through and tightening them up with wheel nuts, this will make sure that the whole lot goes together true.

    4. While you have your van in the air and in pieces clean your suspension components and grease your kingpins, it will significantly improve the ride.

    5. The recommended brake hoses do not fit they are too short, we simply relocated the the brackets to the chassis and welded them in however I am told that the 4WD S10 Blazer flexi’s are longer and may work.

    Master cylinder kit:


    1. With the supplied cylinder the larger port goes to the rear brakes this at the rear of the vehicle when fitted and the smaller to the front (the one at the pushrod end).
    D&D supply a short adapter hose for the rear brakes which we put a proportioning valve on and ran straight to the rears but in theory you don’t need this and could just use a straight coupler.

    If I were to do this again though I’d use a T-piece sending one line to the rears and one to a brake pressure switch binning the mechanical switch supplied.

    The front outlet comes with an adapter to make it work with a standard inverted flare 3/8 fitting which I ran to a T-piece sending one line left and one right.

    2. The aluminium turned caps just need pushing into the master cylinder gently until you feel resistance, they don’t need to be pushed all the way in as it’s a low pressure feed, try to source angled hose barbs for these. I cut down straight ones.

    3. I fitted my resorvoir in the cab, I drilled a couple of holes in the cab floor and ran the hoses up to a resorvoir behind the front panel.

    You need brake feeder pipe between the reservoir and the master cylinder, do not use fuel hose or anything else it will perish. I bought aircooled vw beetle hoses as they are readily available but summit do sell it.

    Make sure there are no kinks or tight bends in the hose so the fluid can fall down to the master cylinder.

    4. My pedal free play was massive, I understand there should be around 1mm free play at the master cylinder but even with the eccentric nut this was too much giving a very floppy pedal, We added 5mm to the pushrod by welding a section of M8 bolt shaft in which solved it. Obviously you may not have this issue and if you do you’d need to calculate the correct length yourself.

    5. Bleeding, bleeding bloody bleeding! when fitting these kits I replaced everything front and back, shoes, pipes, cylinders, flexi’s the lot which meant lots of air and bleeding was an absolute ass, we ended up backfeeding fluid with a syring into the front lines to get it to start bleeding so I’d suggest following the advice and bench bleeding the MC beforehand
