Post by suicideking on Mon Dec 02, 2013 7:46 pm

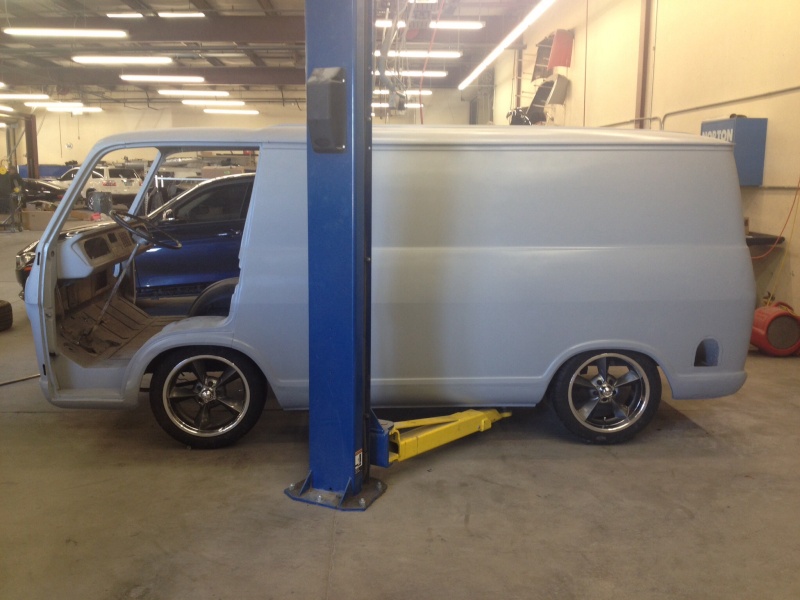

Starting the suspension after tuning up the body. Custom arms and crossmember planned for a modern stance and powerplant.



avatar
Viking

Number of posts : 59
Location : Los Angeles, CA
Registration date : 2012-03-07

Re: IFS under a 65

Post by Viking on Mon Dec 02, 2013 8:58 pm

Keep the photos coming
avatar
savage

Number of posts : 1886
Location : Where Rust Never Sleeps in Ft Wayne IN
Registration date : 2008-05-15

Re: IFS under a 65

Post by savage on Tue Dec 03, 2013 2:46 am

Nice,going to be realy cooll . More pics would be great
avatar
Joe Van
Moderator 1st Class
Moderator 1st Class

Number of posts : 4619
Location : Ocala fl
Registration date : 2012-10-11

Re: IFS under a 65

Post by Joe Van on Tue Dec 03, 2013 3:22 am

SHARP LOOKING 1ST Gen YEA IFS would be nice Keep the Pictures coming.!!!. Are you going with a rack & pinion steering set up.Smile???..
avatar
Digz

Number of posts : 3771
Location : United States Six Lakes MI
Registration date : 2008-05-17

Re: IFS under a 65

Post by Digz on Tue Dec 03, 2013 4:01 am

Everything they all said! Keep 'em coming.
avatar
G-Man
Mayor
Mayor

Number of posts : 30745
Location : Fowlerville, MI
Age : 57
Registration date : 2008-05-06

Re: IFS under a 65

Post by G-Man on Tue Dec 03, 2013 4:22 am

going to be a cool build
avatar
vanny
Moderator

Number of posts : 10550
Location : Ashburnham, MA
Age : 59
Registration date : 2012-09-22

Re: IFS under a 65

Post by vanny on Tue Dec 03, 2013 4:25 am

More, More, More Pics! PLEASE!


_________________
The future will soon be a thing of the past."

http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Tue Dec 03, 2013 5:26 am

I wanted to keep the powerplant chevy however wanted EFI and a modern sized alternator. Settled on the Vortec inline 6 (trailblazer). The van i bought was setup like a gasser with raised springs and coils upfront and a monster Olds V8 under a frankensteined doghouse. The prior build had been done very poorly so the body took alot longer then i expected to get back to show quality including a new roof. The steering will be converted to manual rack and pinion using an Isuzu steering box to transfer the shaft. I am well into the suspension conversion, will post some pics of the progress later. Thanks
avatar
Joe Van
Moderator 1st Class
Moderator 1st Class

Number of posts : 4619
Location : Ocala fl
Registration date : 2012-10-11

Re: IFS under a 65

Post by Joe Van on Tue Dec 03, 2013 3:55 pm

YEA I remeber when that Van was for sale its great that a member here got it..The body did not look too bad in the pictures.... I saved the pictures and it inspired me on my build.!!.. My 2 inch rearched front springs are already starting to sag on the right front not even a year later.!!!.. I see NEW front springs for me income tax time.Smile.
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Wed Dec 04, 2013 8:07 am

Had to remove a fair section of the floor to get to the rails. The last guy forgot to weld the frame rail ends to the front of the body. They are just floating there. That will have to be corrected as well.


plates replace the motor mounts to allow a custom fit one

motor mounts mocked up. these tabs will weld to the plate bolted to the engine, a second set welds to the inner rail


the prior owner had poorly welded plates and used a gratuitous amount of body filler instead of correcting the rust and damage to the rear section. had to replace the rear body panel outright and remake the corners.


its coming along.
avatar
vanny
Moderator

Number of posts : 10550
Location : Ashburnham, MA
Age : 59
Registration date : 2012-09-22

Re: IFS under a 65

Post by vanny on Wed Dec 04, 2013 5:01 pm

Looks like you're making some headway. Thanks for sharing pics!


_________________
The future will soon be a thing of the past."

http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
avatar
panelmanrd

Number of posts : 788
Location : kcmo
Age : 57
Registration date : 2009-10-04

Re: IFS under a 65

Post by panelmanrd on Thu Dec 19, 2013 9:04 am

I checked on the first gen in the garage and the front skin is not welded to the frame either.
it is welded to the floor and the floor is welded to the frame.
avatar
panelmanrd

Number of posts : 788
Location : kcmo
Age : 57
Registration date : 2009-10-04

Re: IFS under a 65

Post by panelmanrd on Fri Dec 27, 2013 6:37 am

any progress with this build?
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Mon May 05, 2014 9:55 pm

Put some time into this project after a considerable layoff. Cut the floor out. (a little at a time) and replaced the rails. Had to notch the rear rails to accommodate the lower suspension. And make it a tick more narrow to take the IFS front end. Hoping to bead roll the floor panels. 4 link parallel on the rear.

IMG_4370

IMG_4371

IMG_4373

IMG_4380

IMG_4381

IMG_4382
avatar
Digz

Number of posts : 3771
Location : United States Six Lakes MI
Registration date : 2008-05-17

Re: IFS under a 65

Post by Digz on Tue May 06, 2014 3:19 am

If there was a "LIKE" button, it would have to be a big one!
avatar
vanny
Moderator

Number of posts : 10550
Location : Ashburnham, MA
Age : 59
Registration date : 2012-09-22

Re: IFS under a 65

Post by vanny on Tue May 06, 2014 3:28 am

I think there should be a "LOVE" button! Fantastic work!


_________________
The future will soon be a thing of the past."

http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
avatar
jimthefred

Number of posts : 326
Location : Parksley VA
Registration date : 2012-01-15

Re: IFS under a 65

Post by jimthefred on Wed May 07, 2014 2:14 pm


Dang picture links dont work!!!Mad


suicideking wrote:Put some time into this project after a considerable layoff. Cut the floor out. (a little at a time) and replaced the rails. Had to notch the rear rails to accommodate the lower suspension. And make it a tick more narrow to take the IFS front end. Hoping to bead roll the floor panels. 4 link parallel on the rear.

<a href="https://www.flickr.com/photos/suicideking15/14116647522" title="IMG_4370 by suicideking15, on Flickr"><img src="https://farm8.staticflickr.com/7354/14116647522_e32f89449d_z.jpg" width="480" height="640" alt="IMG_4370"></a>

<a href="https://www.flickr.com/photos/suicideking15/13933042249" title="IMG_4371 by suicideking15, on Flickr"><img src="https://farm8.staticflickr.com/7380/13933042249_e7a3b78ccb_z.jpg" width="480" height="640" alt="IMG_4371"></a>

<a href="https://www.flickr.com/photos/suicideking15/14119697885" title="IMG_4373 by suicideking15, on Flickr"><img src="https://farm6.staticflickr.com/5154/14119697885_0f6797f3e3_z.jpg" width="480" height="640" alt="IMG_4373"></a>

<a href="https://www.flickr.com/photos/suicideking15/13933073668" title="IMG_4380 by suicideking15, on Flickr"><img src="https://farm8.staticflickr.com/7342/13933073668_7f39aac8e3_z.jpg" width="480" height="640" alt="IMG_4380"></a>

<a href="https://www.flickr.com/photos/suicideking15/14120040704" title="IMG_4381 by suicideking15, on Flickr"><img src="https://farm8.staticflickr.com/7329/14120040704_24c9b7ca73_z.jpg" width="640" height="480" alt="IMG_4381"></a>

<a href="https://www.flickr.com/photos/suicideking15/13933073358" title="IMG_4382 by suicideking15, on Flickr"><img src="https://farm6.staticflickr.com/5466/13933073358_0c985cb03c_z.jpg" width="640" height="480" alt="IMG_4382"></a>
avatar
panelmanrd

Number of posts : 788
Location : kcmo
Age : 57
Registration date : 2009-10-04

Re: IFS under a 65

Post by panelmanrd on Wed May 07, 2014 3:28 pm

dying to see how this worked but pics aren`t working
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Wed May 07, 2014 9:14 pm

IMG_4385 by suicideking15, on Flickr

IMG_4384 by suicideking15, on Flickr
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Wed May 07, 2014 9:16 pm

IMG_4380 by suicideking15, on Flickr
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Wed May 07, 2014 9:20 pm

try this link for the pictures that are not showing above
65 Van
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Thu May 15, 2014 7:10 pm


Coil overs fitting in nicely
avatar
vanny
Moderator

Number of posts : 10550
Location : Ashburnham, MA
Age : 59
Registration date : 2012-09-22

Re: IFS under a 65

Post by vanny on Thu May 15, 2014 7:46 pm

I am truly amazed at some of the talented people on this site! I admire anyone who has the guts to take on such a challenge head on and go where most others dare not. I can't wait to see how this turns out when all is said and done. It's like watching an artist at work! Thanks for bringing us along for the ride with these pics! I call "SHOTGUN!" Twisted Evil


_________________
The future will soon be a thing of the past."

http://public.fotki.com/Vintage-Vans/vintage-vans-es/ruff-diamond-1/?cmd=fs_slideshow
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Thu May 15, 2014 9:58 pm

Thanks for the compliments. I have felt in over my head for most of this project but making progress. The chassis seems to be the easiest part to tackle. I am looking forward to learning the ins and outs on the re-wire.
avatar
suicideking

Number of posts : 68
Location : Mesa, AZ
Registration date : 2013-06-13

Re: IFS under a 65

Post by suicideking on Sat May 17, 2014 1:16 pm

Exchanging the rails with the body on has been challenging. Today I cut back the front body braces and replaced them. After I do the same to the rear, I can start the rear suspension and PT.
Before

After


I saw another project on here where the builder used a box from an Isuzu Rodeo to transfer the steering to manual rack. It should hang right on the outside of my new rail
