    How to: Add Turn Signals and Wire Them Up! (The Basics)

    DanTheVanMan
    DanTheVanMan
    Commissioner
    Commissioner


    Number of posts : 7899
    Location : Escanaba, Michigan
    Age : 62
    Registration date : 2008-10-08

    How to:  Add Turn Signals and Wire Them Up! (The Basics) Empty How to: Add Turn Signals and Wire Them Up! (The Basics)

    Post by DanTheVanMan Fri Aug 19, 2011 7:39 am

    Want to add turn signals to your Van?

    You should! It's not that hard...

    You have 3 options:

    1. Use a factory switch.

    2. Use an aftermarket switch.

    3. Make your own switch system. (It's easy!)

    Factory switch Most of you will have a van that uses a steering column that has a turn signal switch built in. What you need to do is find the wiring diagram for the vehicle the column came from. Just find it on the internet. It will show you which wire should go where...

    Aftermarket switch

    Some of you will have a van that doesn't have a factory switch in the column.

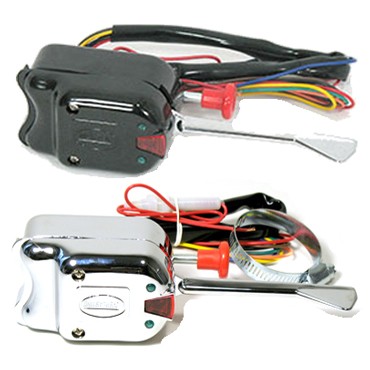

    The easiest way to add on turn signals without a factory switch is to use an aftermarket unit like these universal types:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi10

    However, some people don't like the look of it so they want to hide it. It's easy to put that unit under your seat, by the shifter, etc.

    Make your own switch!

    Still others would like to run their turn signals with a simple toggle switch on the dash.

    There are two ways to wire it in...

    -Wiring in turn signals that have their own seperate rear bulbs.

    -Wiring in turn signals that share the rear bulbs with the brake and tail lights.

    Let's start with the first... What you will need is a toggle switch and a flasher unit. For the toggle switch you will need a SPDT (Single Pole Dual Throw) toggle switch. They look something like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi11

    They work something like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi12

    Next you need a 2 pin flasher unit. They look like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi13

    NOTE: If you want to run LED lights or bulbs, you will have to run an electronic flasher unit.

    Now, wire them in like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi14

    Ok, now to wire in turn signals that share the rear bulbs with the brake and tail lights, you have to get a little creative... What you have to do is make the brake light wires and the turn signal wires combine in a way that the turn signal wires can override the brake signal. There are complicated ways to wire in multiple relays to do it, and aftermarket units that will do this but there is an easier way...

    A quick and cheap way that works just as good is a tail light wiring converter for trailers. They will combine the brake wiring and the turn signal wiring so they will work.

    They look like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi16

    Some have the tail light wire running through them (4 wire into 3 wire), and some don't (3 wire into 2 wire). It doesn't make any difference, as the tail light wiring isn't affected. All you're worried about is the brake and turn signal wires.

    Note: Don't try to run them with LED's. The converters aren't made to run the extra voltage. Just stay with regular bulbs and it will work great.

    Now wire it in like this. (This version uses a 4 wire into 3 wire converter. For a 3 wire into 2 wire converter, just take the tail light wire past it.)

    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi15

    Hey, what about hazard lights?

    No problem, you just need another toggle switch and flasher unit. The toggle switch is different than the other though...

    For the toggle switch you will need a DPST (Dual Pole Single Throw) toggle switch. They look something like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi17

    They work something like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi18

    Now you need another 2 pin flasher unit.

    Now wire them in like this:
    How to:  Add Turn Signals and Wire Them Up! (The Basics) Turnsi19

    And there you go! Hope this helps.... Dan

    ** All parts used here can be found at NAPA...****


    _________________
    DanTheVanMan
    1965 Chevy G10 Sportvan Custom
    1984 Jeep CJ-7 Laredo, Restored
    2004 Kawasaki KLR650
    1997 Jeep TJ Sport

    My Mini Gallery

    How to:  Add Turn Signals and Wire Them Up! (The Basics) Qr_cod10

    <-<-<- Cruising is not a "Point A to Point B" thing, but an "Everything in between thing!  <-<-<-
    avatar
    Guest
    Guest


    How to:  Add Turn Signals and Wire Them Up! (The Basics) Empty Re: How to: Add Turn Signals and Wire Them Up! (The Basics)

    Post by Guest Sun Jan 01, 2012 5:40 pm

    one quick question. i know it is 16g wire.. i have enough wire to run the blinkers and hazard on my van... only thing is that it is 18g... is that ok to use or should i hold it for something else?
    DanTheVanMan
    DanTheVanMan
    Commissioner
    Commissioner


    Number of posts : 7899
    Location : Escanaba, Michigan
    Age : 62
    Registration date : 2008-10-08

    How to:  Add Turn Signals and Wire Them Up! (The Basics) Empty Re: How to: Add Turn Signals and Wire Them Up! (The Basics)

    Post by DanTheVanMan Sun Jan 01, 2012 6:14 pm

    Beanses,
    Will keep this as simple as possible. Bigger is better. I know it says 16 (14g in most rears) but I use 14g and 12g. Fires happen for many reasons. The worst reason of all is because of you! Wait and be safe. Using inferior or smaller wire is just rolling the dice.

    Dan
